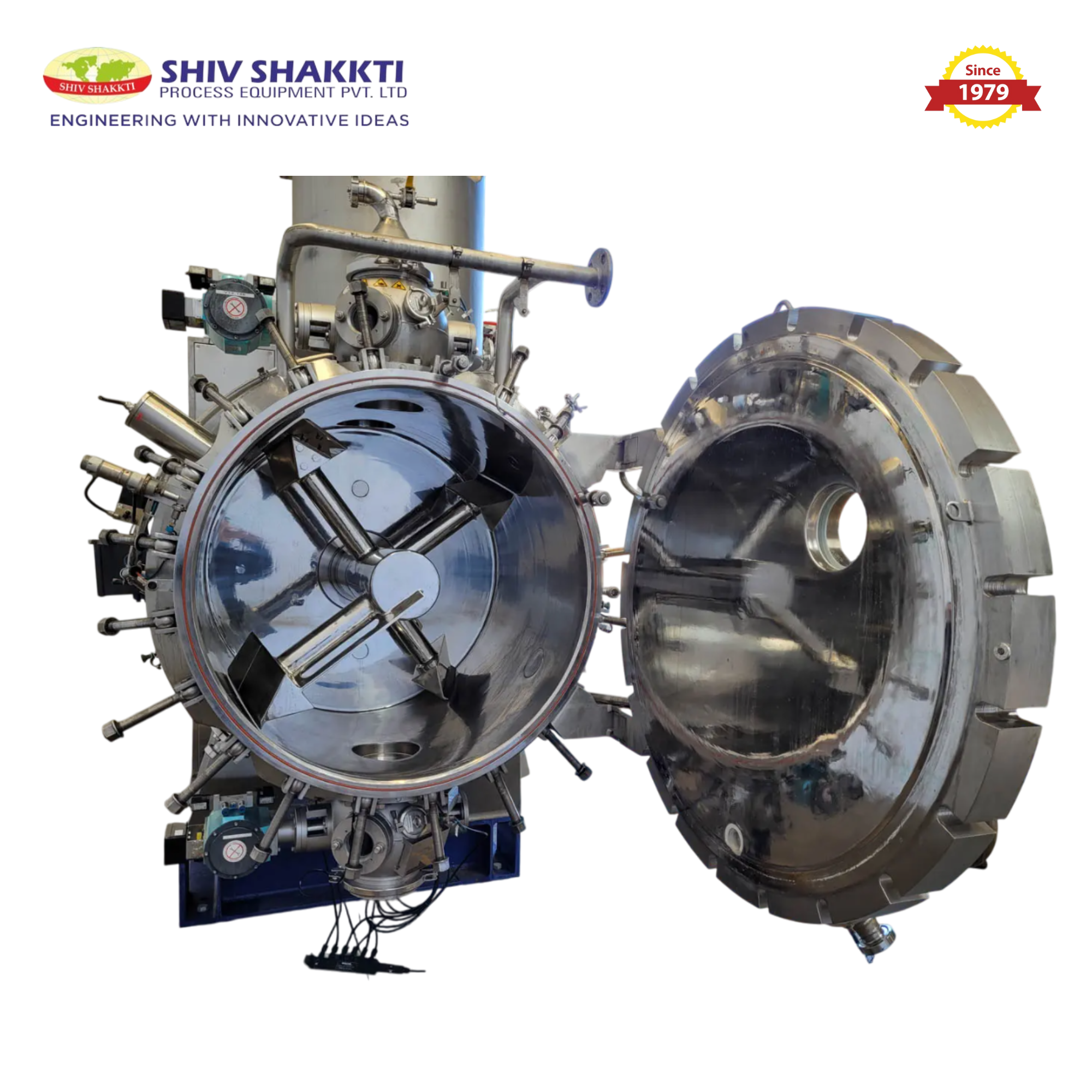

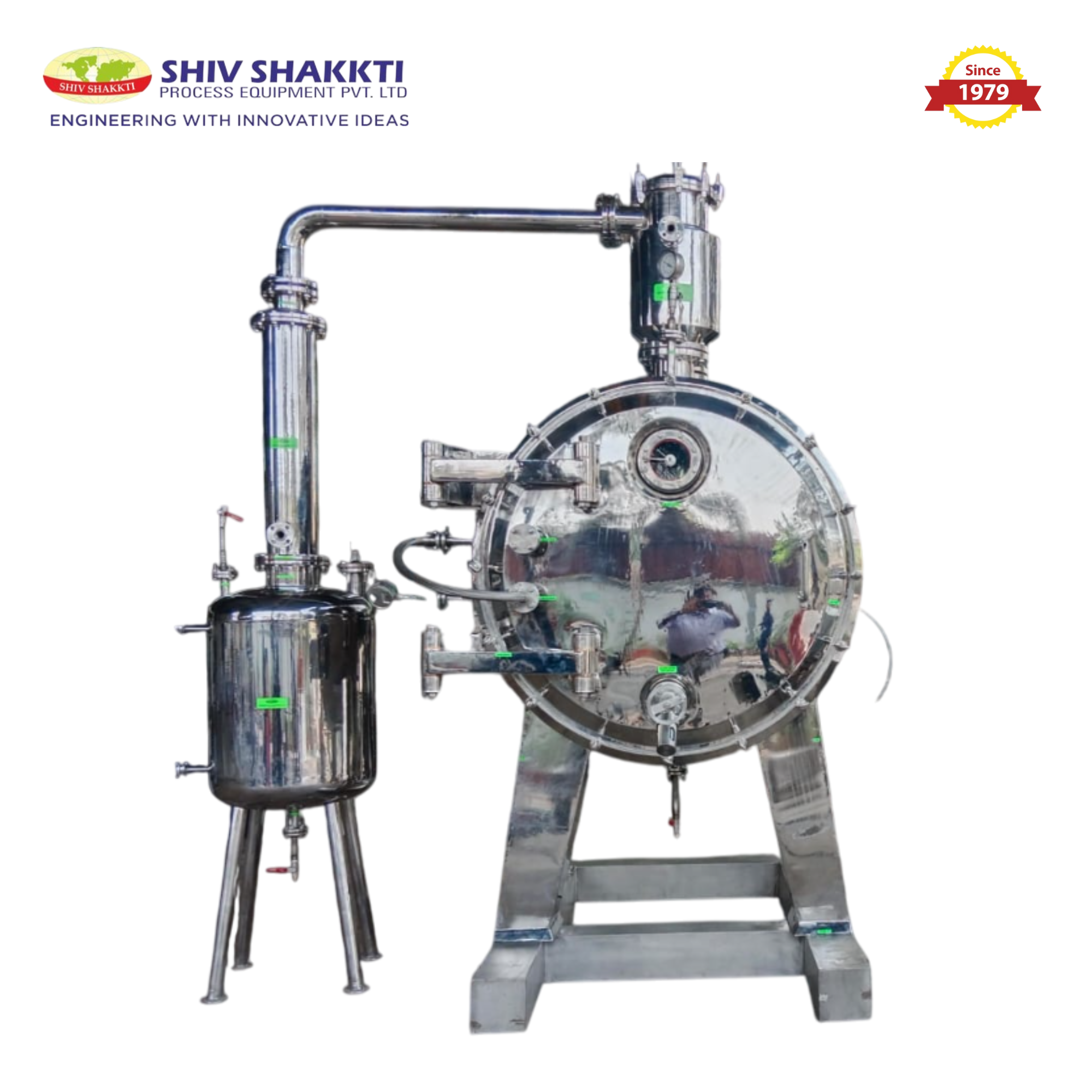

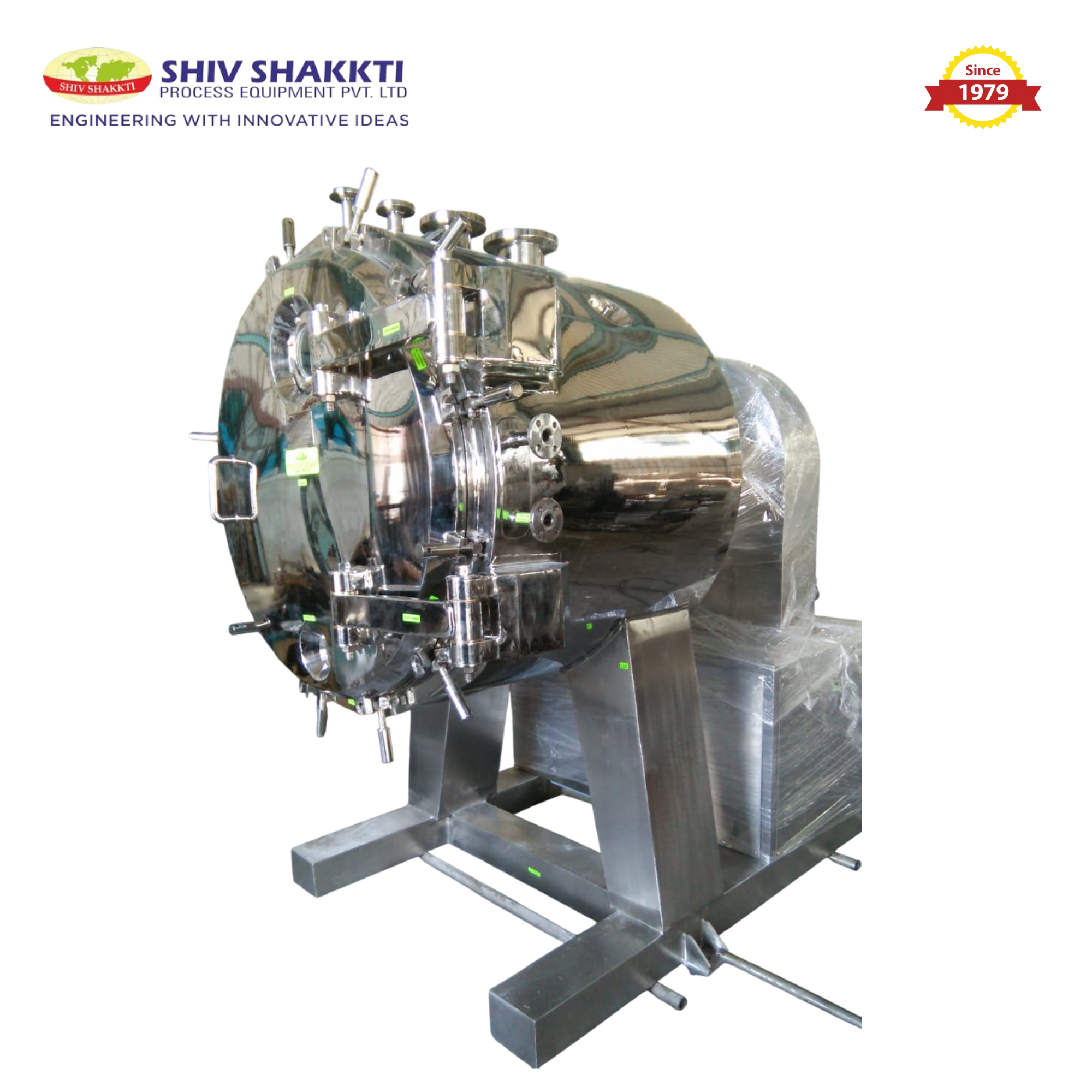

The Cantilever Type Rotary Vacuum Paddle Dryer (RVPD) is specially designed for pharmaceutical, chemical, and API industries, ensuring maximum product purity and minimal contamination. This GMP-compliant model features a cantilever design that eliminates the need for support on the non-drive end, allowing for complete side access—ideal for easy cleaning, maintenance, and inspection.
Engineered for efficient drying under vacuum, the RVPD offers uniform heat transfer through hollow paddles and a jacketed shell, ensuring gentle drying of heat-sensitive products like APIs, intermediates, and fine chemicals. The cantilever construction also reduces mechanical complexity, enhancing operational safety and reliability.
Key features include:
Contamination-free operation with a fully sealed vacuum system
Minimal product retention, ideal for batch processing
CE, ATEX, and cGMP compliant for global regulatory standards
Constructed in SS316L, Hastelloy C-22, or C-276 for corrosion resistance
Suitable for drying crystalline, amorphous, or paste-like materials
The Cantilever RVPD is a high-performance solution for companies seeking hygienic, energy-efficient, and maintenance-friendly drying equipment that meets the strict standards of the pharmaceutical industry.
Sizes
Materials of
Coatings | Model | Working Capacity (L) | Total Volume (L) | Motor Power (HP) | Shell Dia. (mm) | Length (mm) |
|---|---|---|---|---|---|
| RVPD-PH-100 | 50 | 100 | 3 HP | 500 | 1050 |
| RVPD-PH-250 | 125 | 250 | 5 HP | 650 | 1250 |
| RVPD-PH-500 | 250 | 500 | 7.5 HP | 800 | 1450 |
| RVPD-PH-1000 | 500 | 1000 | 10 HP | 1000 | 1800 |
| RVPD-PH-2000 | 1000 | 2000 | 15 HP | 1200 | 2100 |
| RVPD-PH-3000 | 1500 | 3000 | 20 HP | 1400 | 2400 |
| RVPD-PH-5000 | 2500 | 5000 | 30 HP | 1600 | 2800 |
| RVPD-PH-Custom | Up to 30,000 L | Custom | Up to 100 HP | As required | As required |
| Parameter / Feature | Details |
|---|---|
| Model Type | Cantilever Design – Pharmaceutical Grade (GMP Compliant) |
| Capacity Range | 25 Litres to 10,000 Litres |
| Material of Construction | SS316L, Hastelloy C-22, Hastelloy C-276, Alloy 904L (as per application) |
| Surface Finish | Mirror / Electro-Polished (Ra < 0.4 µm) – Pharma Grade |
| Drying Temperature | Up to 300°C (with Hot Oil / Thermic Fluid Heating) |
| Vacuum Operation | Up to 0.1 mbar for low temperature & solvent recovery applications |
| Heating Media | Hot Oil, Steam, Hot Water (Jacket & Paddle Heated) |
| Drive Mechanism | Heavy-Duty Motor with Gearbox, Optional VFD for Speed Control |
| Paddle Design | Hollow Paddle for Efficient Heat Transfer, Uniform Drying |
| Discharge Valve | Flush Bottom Type – Manual, Pneumatic, or Motorized |
| Sealing System | Double Mechanical Seal with Thermosyphon or Dry Seal – Leak-Proof |
| Cleaning System | CIP / WIP Compatible – Easy Internal Access due to Cantilever Design |
| Product Handling | Suitable for Powders, Crystals, Pastes, and Heat-Sensitive APIs |
| Contamination Control | Cantilever Design Prevents Cross Contamination – Ideal for Pharma Use |
| Dust Collection | Inbuilt Dust Filter, Vacuum Receiver & Condenser for Solvent Recovery |
| Certifications & Compliance | CE Marked, ATEX Ready, cGMP & FDA Compliant |
| Maintenance & Safety | Low Maintenance, Explosion-Proof Options, Fully Sealed Operation |
| Applications | API Drying, Bulk Drug Processing, Chemicals, Intermediates, Solvents |
| Manufacturer | Shiv Shakkti Process Equipment – Trusted Global Supplier Since 1979 |
