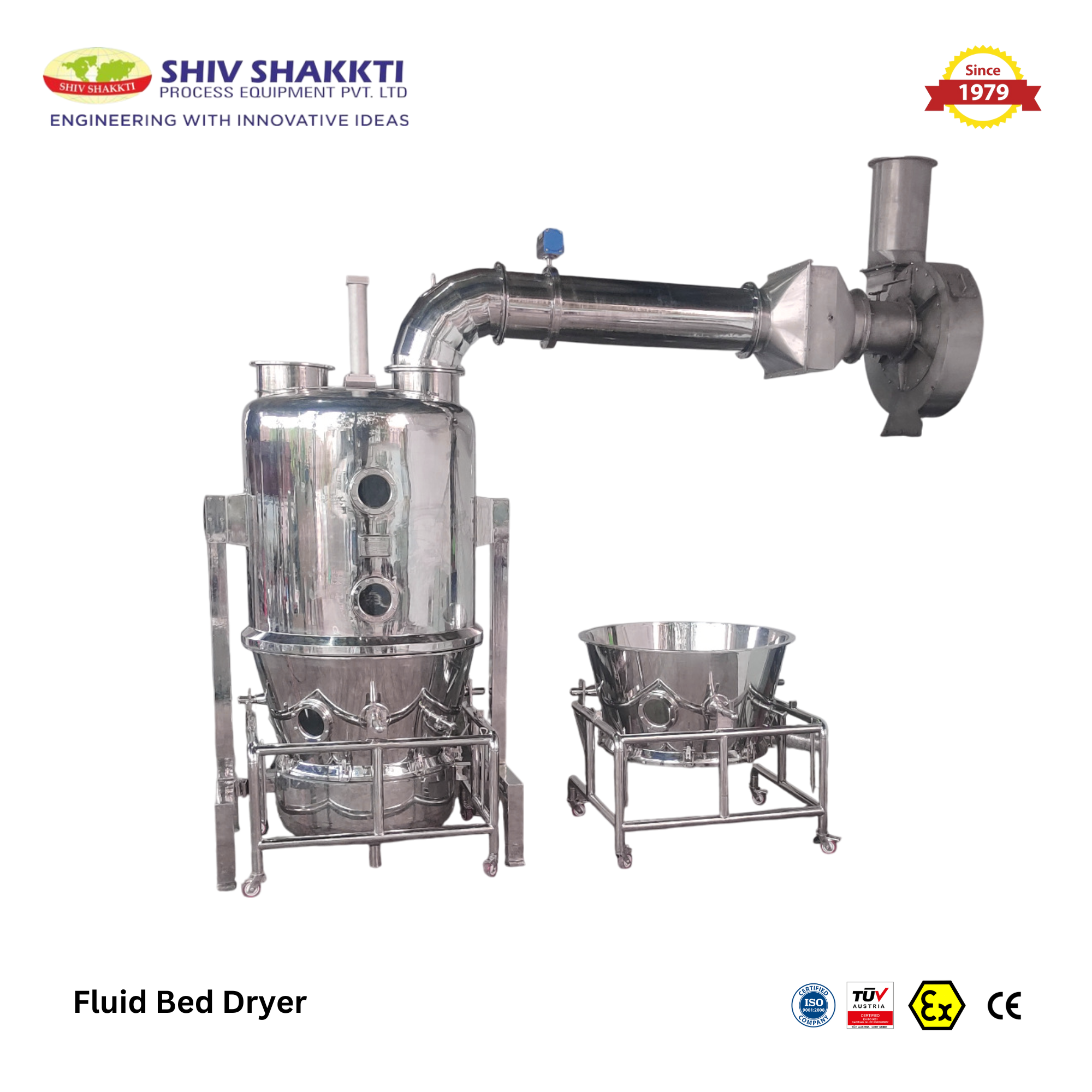

Fluid Bed Dryers

In Fluid Bed Dryers, the product to be dried is fluidized by passing hot air through it. This process achieves fast heat transfer, making it very efficient, yet gentle on the product, providing rapid drying of pharmaceutical/fine chemical powders and particles. These Fluid Bed Dryers are of high quality and efficiency, in compliance with cGMP norms, built in stainless steel construction of 316/316L grade contact parts. These Fluid Bed Dryers find application for drying powders, granular crystalline, coarse, or similar material in pharmaceuticals, fine chemicals, dyes, food, and allied products.

  • Sizes
    Available:
    From 5 - 500 Kg
  • Materials of
    Construction:
    SS 316, SS 304, SS 904L, Hastelloy, Titanium
  • Coatings
    Available:
    Halar (ECTFE), Teflon (PFA), Rubber Lining, FRP Lining

Technical Specifications

MODEL SS -30 SS -60 SS -120 SS -150 SS -200 SS -250 SS -300 SS -500
Product Container Volume (Ltrs.) 100 216 425 450 670 750 950 1450
Batch Cap. (Kgs.) 30 60 120 150 200 250 300 500
Motor ( H.P. ) 5 10 15 15 20 20 25 30
Steam Consumption (Kg / hr at pressure 3-4 Kg / cm2) 25 50 120 160 200 230 250 295
Centrifugal Force (G) 2100 2340 3050 3300 3400 3500 3600 3850
Width 1150 1200 1525 1600 1850 1900 2000 2100
Length 1250 1450 1970 2000 2200 2300 2400 2450

Product Features

Compliance: In compliance with cGMP norms/guidelines and FDA regulations.
Hygienic Design: Aseptic, hygienic system designs with intrinsically safe earth/electrical systems generated due to static charge.
Capacity Range: Kilolab models to production models (10 kg/batch up to 500 kg/batch capacity).
Validation: Full validation services including DQ, IQ/OQ, FAT/SAT protocols.
Construction Quality: All product process areas of the equipment are constructed from AISI 316/316L stainless steel with a mirror polish.
Air Filtration: Pre-air filtration module with 20-micron filters and secondary 5-micron filters.
Sealing: Inflatable silicon seals for the product container/bowl and finger bag filter.
Pressure Relief: Excess pressure flap/relief provided.
Container Lifting System: Pneumatic product container lifting system.
Automatic Shaking: Automatic shaking of finger bag filters.
Antistatic Filter: Antistatic finger bag filter.
Control Panel: Stainless steel and pressurized control panel.
Heating Options: Available with electrical, steam, thermic fluid, or LPG gas-fired hot air heating systems.
Remote Mounting: Air filter assembly along with the heating system and blower unit can be mounted in a remote area.
Sampling Port: Online sampling port for easy access.
    Optional Extras:
  • HEPA Filters 0.3-micron absolute inlet air filter system.
  • Variable Frequency Drive For efficient and accurate speed control.
  • Certified Flameproof Components Control/operating panel and motor for inflammable/solvent environments.
  • CIP/SIP Systems For easy cleaning and sterilization.
