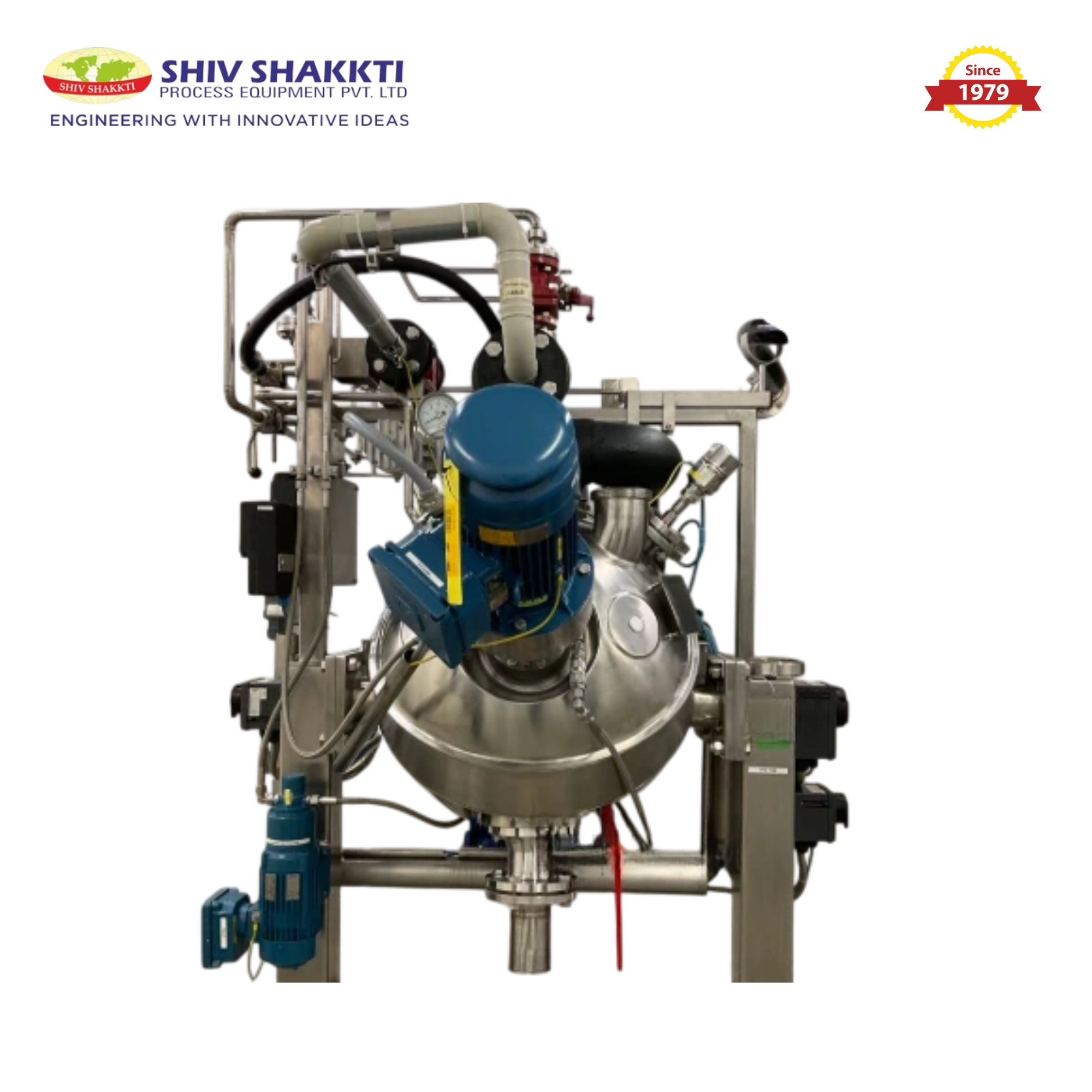

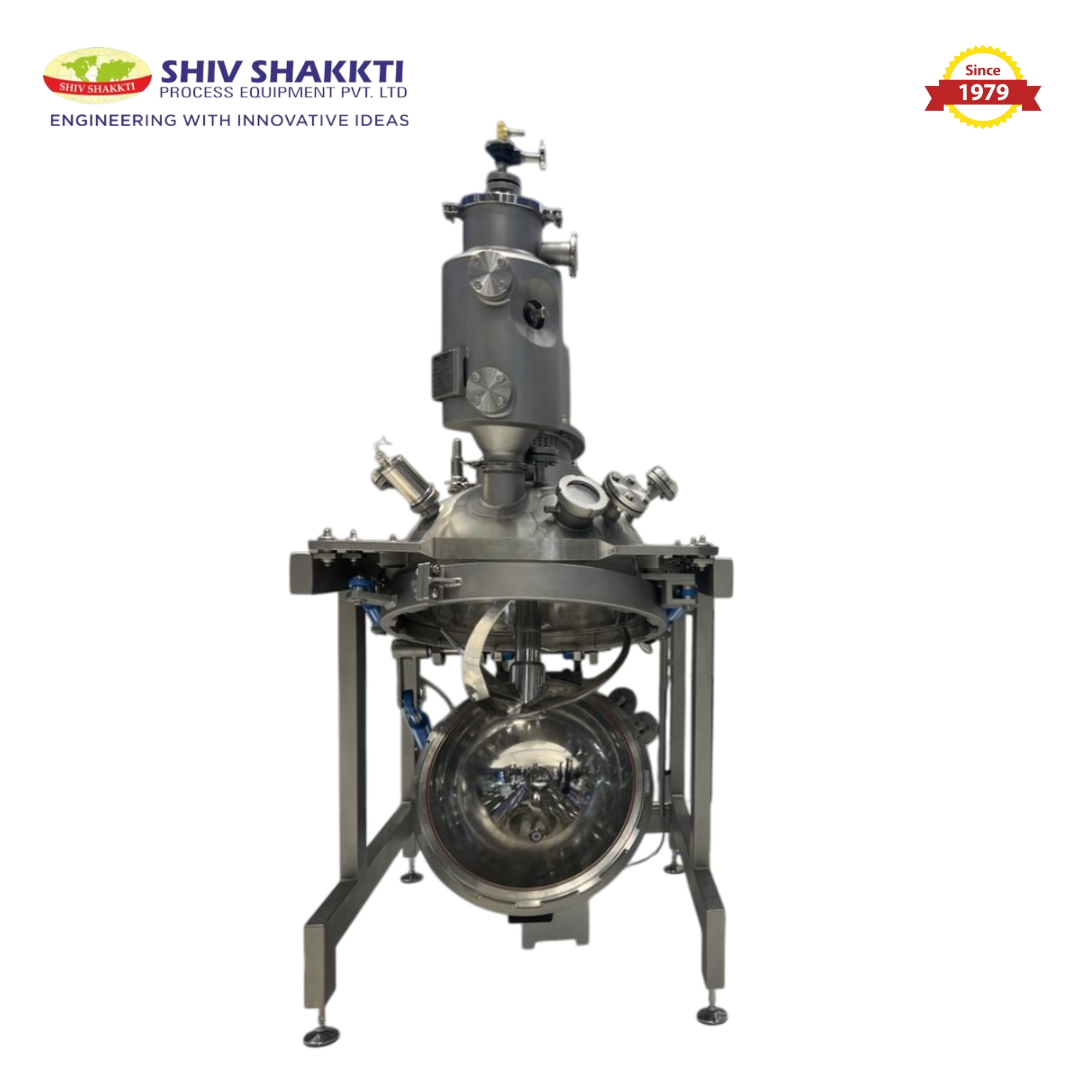

Shiv Shakti Process Equipment manufactures Spherical Vacuum Dryers ranging from 50L to 6000L, ideal for drying, mixing, and granulating high-value products. The unique spherical design ensures total product discharge, minimal heel loss, and easy cleaning, boosting yield and reducing downtime. Equipped with a heated 3-arm agitator and high-speed chopper, it delivers uniform drying, prevents charring, and disintegrates lumps effectively. Its pressure-resistant build, CIP/SIP compatibility, and quick-open bayonet system make it perfect for pharmaceutical, chemical, and specialty applications. Fully customizable with PLC-SCADA automation, various MOCs (SS316L, Hastelloy, etc.), and containment integration for potent APIs.
Sizes
Materials of | Model | SSPE-SVD 100 | SSPE-SVD 200 | SSPE-SVD 400 | SSPE-SVD 1000 | SSPE-SVD 2000 | SSPE-SVD 4000 |
|---|---|---|---|---|---|---|
| Total Volume (L) | 150 | 350 | 650 | 1500 | 3200 | 6500 |
| Working Capacity (L) | 100 | 200 | 400 | 1000 | 2000 | 4000 |
| QD (Dia. mm) | 700 | 900 | 1050 | 1400 | 1700 | 2100 |
| Gross Weight (Kg) | 1500 | 2500 | 3000 | 8000 | 12000 | 17000 |
| Heat Transfer Area (m²) | 1.5 | 3.5 | 3.5 | 6.4 | 9.4 | 16.5 |
| Main Motor (KW) | 11 | 15 | 25 | 45 | 55 | 75 |
| Main Motor RPM | 4–40 | 4–40 | 4–30 | 4–18 | 4–18 | 4–15 |
| Chopper Motor (KW) | 3.75 | 3.75 | 5.5 | 7.5 | 12 | 15 |
| Chopper RPM | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Spherical Geometry - Eliminates dead zones, ensures complete product discharge – critical for high-value, low-volume materials. |
| Vacuum Drying with Agitation - Efficient heat transfer from both jacket and hollow agitator improves batch uniformity and reduces drying time. |
| Lump Breaker Integration - High-speed choppers break down product agglomerates, enhancing surface area and drying speed. |
| cGMP Compliance - Fully compliant construction with easy-to-clean, inspectable design – ideal for regulated industries. |
| Quick Open/Close - Special Bayonet and Super ‘C’ Lock systems enable rapid access for CIP/SIP, inspection, and changeover. |
| Containment Ready - Easily integrated with isolators or split butterfly valves for OEB 4/5 level containment during handling of potent APIs. |
| Explosion & Surge Resistance - Spherical design naturally resists internal pressure spikes due to thermal decomposition or product dusting. |
