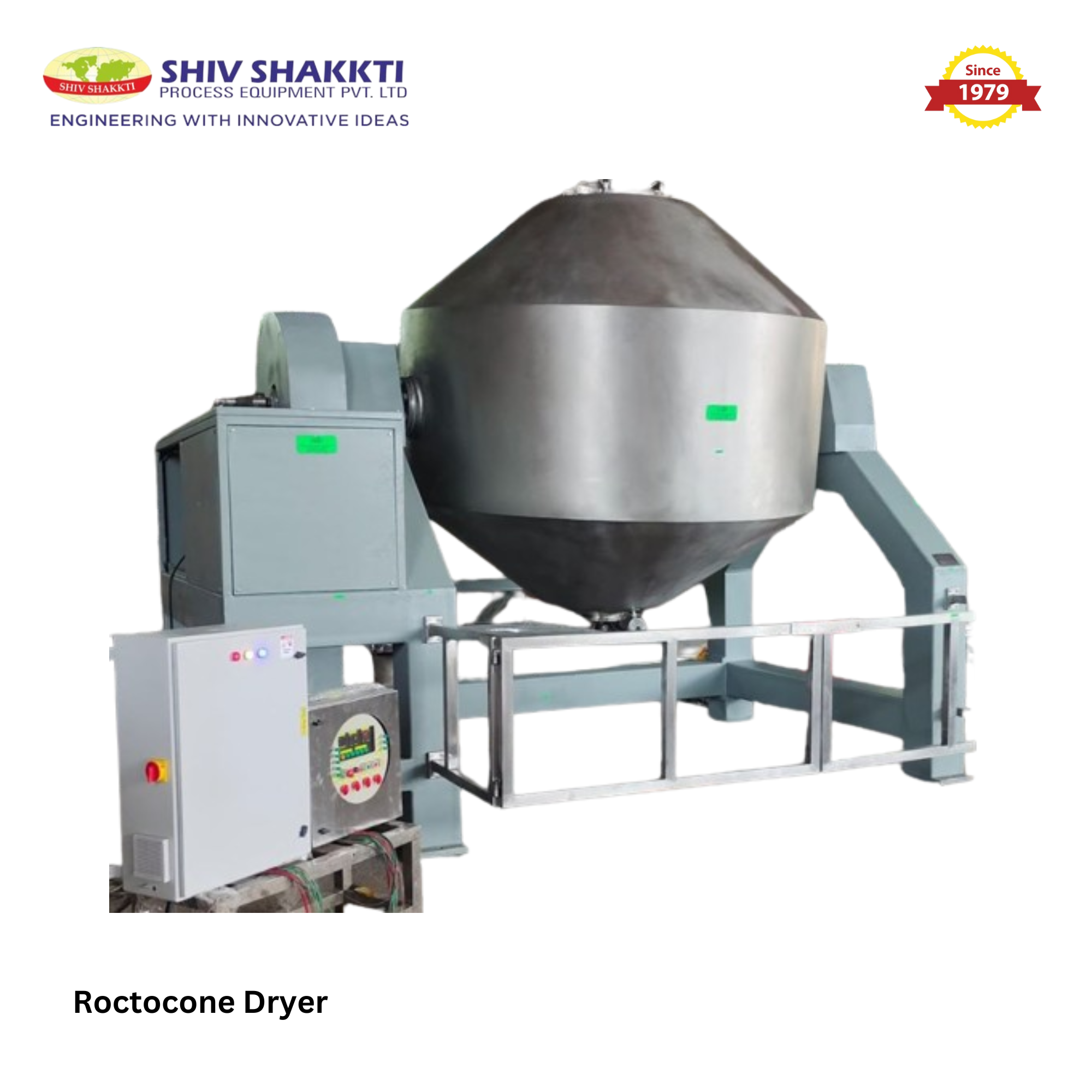

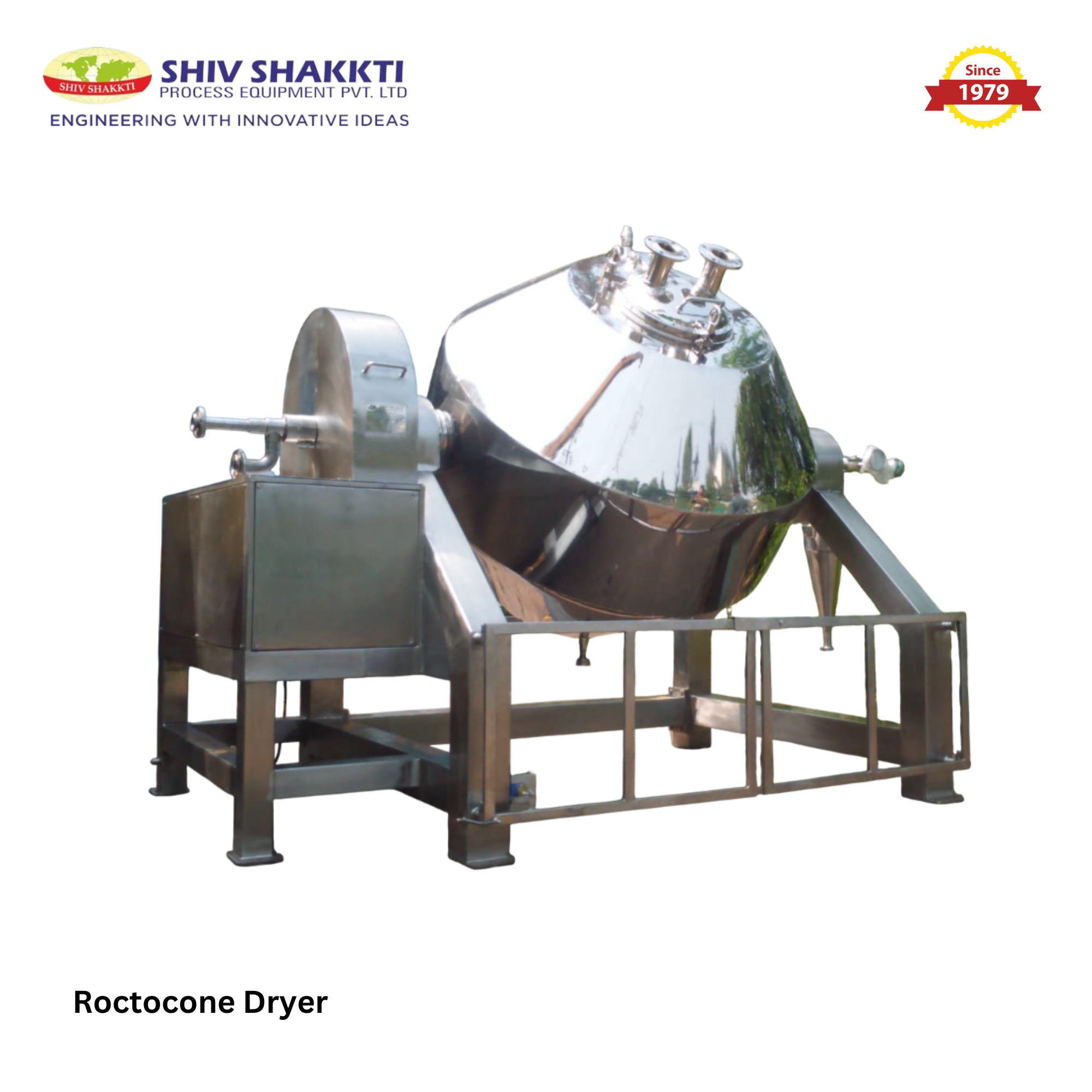

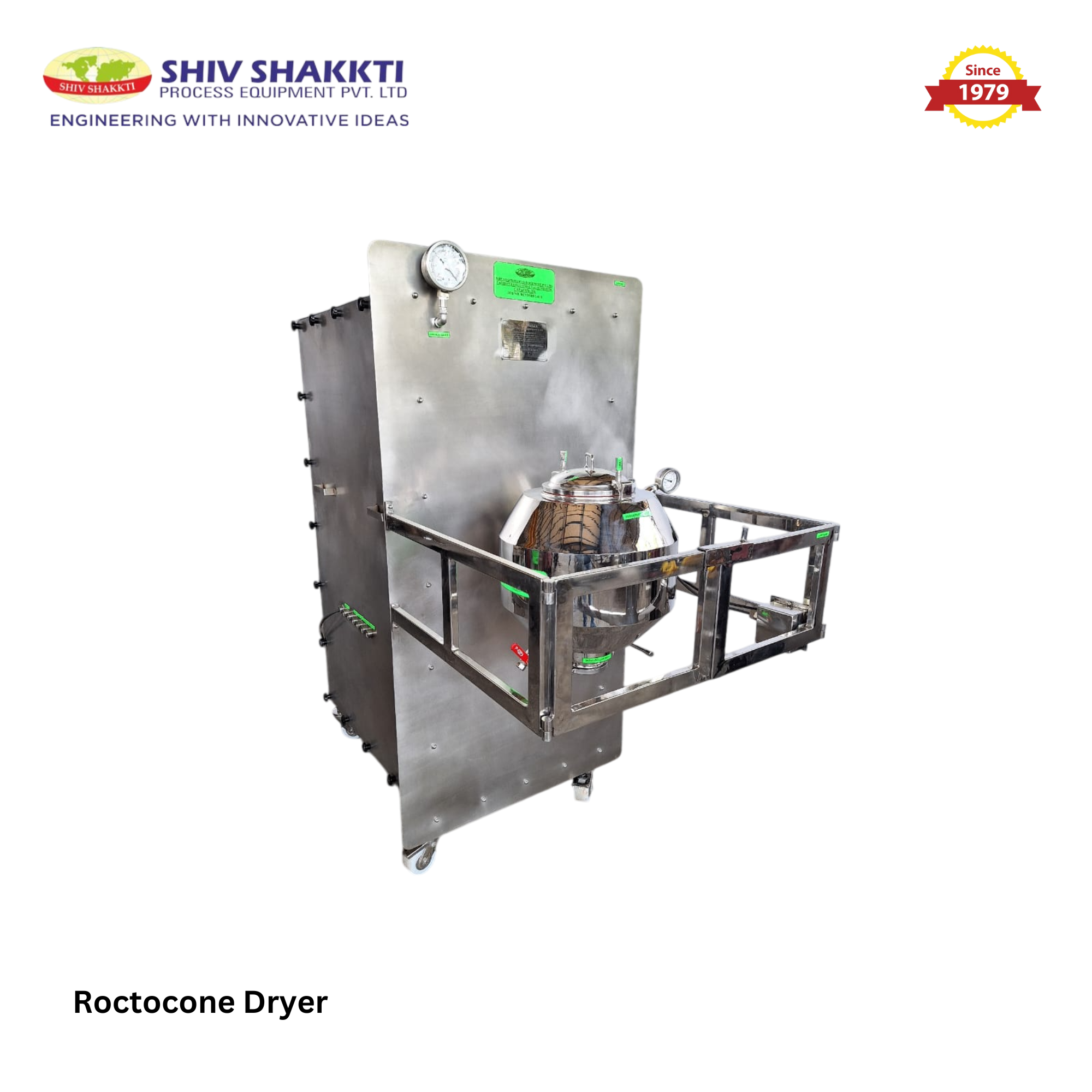

The Rotocone Vacuum Dryer (RCVD), also known as a Double Cone Vacuum Dryer, is a highly efficient solution for gentle drying of heat-sensitive, crystalline, and hygroscopic materials. Designed for the pharmaceutical, chemical, food, and cosmetic industries, the RCVD operates under vacuum to reduce drying temperature and protect product integrity.
Its double-cone rotating design ensures uniform mixing and drying, minimal product degradation, and low residual moisture. The slow tumbling action combined with vacuum operation enables efficient drying without localized overheating or clumping, making it ideal for drying active pharmaceutical ingredients (APIs), intermediates, and fine chemicals.
Constructed with GMP-compliant materials and available in SS316L, Hastelloy C-22, C-276, and other high-grade alloys, the RCVD is engineered for safe, contamination-free processing in critical industries.
Sizes
Materials of
Coatings | MODEL | SS/DCVD 50 | SS/DCVD 100 | SS/DCVD 200 | SS/DCVD 200 | SS/DCVD 500 | SS/DCVD 700 | SS/DCVD 1000 | SS/DCVD 1500 | SS/DCVD 2000 |
|---|---|---|---|---|---|---|---|---|---|
| Total Volume (Ltrs) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | 1500 | 2000 |
| RPM | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 5 | 5 |
| Working Volume (Ltrs) | 25 | 50 | 120 | 150 | 250 | 350 | 500 | 750 | 1000 |
| Condenser (Sq.M) | 0.5 | 1 | 1.5 | 2 | 3 | 3.5 | 4 | 6 | 8 |
| Receiver (Ltrs) | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 350 |
| Cyclone Separator | 50 | 75 | 120 | 100 | 125 | 150 | 175 | 200 | 225 |
| Drive Motor (HP) | 1 | 1.5 | 3 | 3 | 5 | 7.5 | 1.5 | 10 | 12.5 |
| Feature | Details |
|---|---|
| Design Type | Horizontal Double Cone / Rotocone Design – Slow Rotating |
| Capacity Range | 10 Litres to 10,000 Litres |
| Drying Method | Vacuum Drying with Uniform Mixing |
| Drying Temperature | Up to 150°C (or higher with hot oil systems) |
| Vacuum Level | Down to 0.1 mbar (High Vacuum Efficiency) |
| Material of Construction | SS316L, Hastelloy C-22 / C-276, Alloy 904L – as per product compatibility |
| Surface Finish | Mirror / Electro-polished (Ra < 0.4 µm) – cGMP Grade |
| Heating Options | Hot Water / Steam / Hot Oil via Jacket |
| Mixing Action | Gentle Tumbling – Ideal for Fragile, Heat-Sensitive Products |
| Discharge System | Manual / Pneumatic Butterfly Valve / Slide Gate Valve |
| Safety Features | Overpressure Protection, Vacuum Interlocks, Flameproof Electricals (ATEX) |
| Cleaning System | CIP / WIP Ready – Easy Internal Access |
| Certifications | cGMP Compliant, CE Marked, ATEX Certified Models Available |
| Applications | API Drying, Fine Chemicals, Herbal Extracts, Food Powders, Cosmetics |
